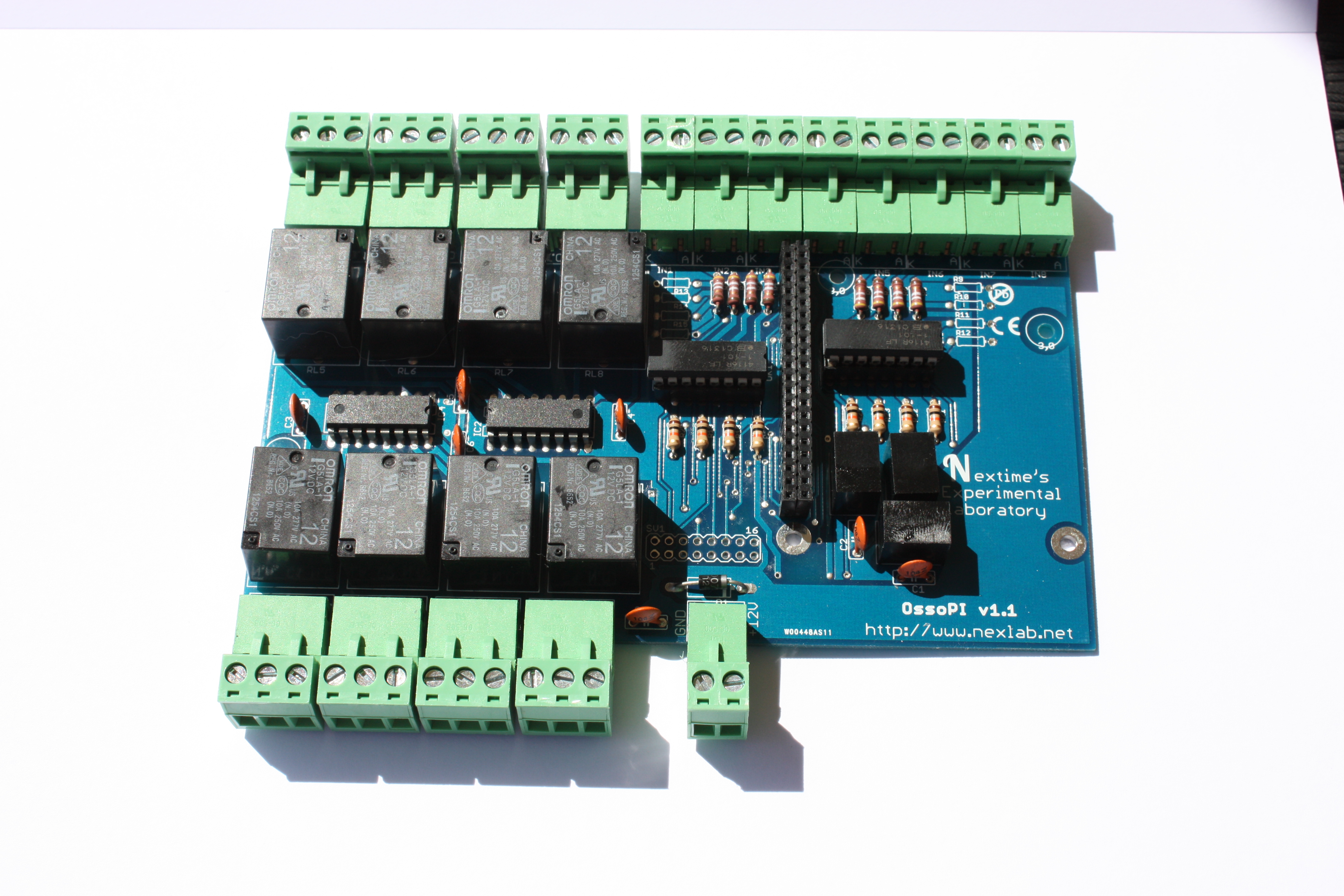

OssoPI Raspberry PI (1 B+ or 2) I/O expansion board
€92.00
- both rpi 1 B+ or 2 supported
- 8 relays up to 275VAC @ 10A
- 8 digital opto-isolated inputs up to 50 meters distance
- 9V to 24V DC power supply accepted
- RPI is powered from the expansion pins
- open source design
Out of stock
Product Description
OssoPI expand the Raspberry PI (both 1 B+ or 2) adding 8 relays and 8 opto-isolated or non opto-isolated digital inputs
Features:
-
8 relays up to 275V AC @10A
-
8 digital opto-isolated or non-optoisolated inputs up to 50 meters distance
-
power supply 12V DC (Raspberry PI powered from expansion pins)
- compatible with both RPI 1 B+ or 2
Open Source:
https://git.nexlab.net/nexlab/OssoPI
Documentation:
Reviews
Add a review
You must be logged in to post a comment.
Related products
-
3drag PowerPWM
€9.00- Fast digital bufferÂ
- opto-isolated circuits
- 8 to 16V input
- 24V up to 10A for the output circuit
- open source design
- ideal for driving 3drag/k8200 and other 3d printers heatbed with an additional 24V powe unit
-4 in stock Read more
rasky, open source KVM over IP
€5.00- Rasky is a low cost open source (hardware and software) KVM over IP built on top of the well known RaspberryPI model 2B featuring VGA video capture, USB keyboard and mouse emulation, remote control both by web (ajax VNC) and VNC, remote relay switches and digital inputs.
0 in stock Read more
SafePI – RaspberryPI 1B+, 2 and 3 battery backed safe shutdown / UPS
€9.00- It notify the RPI on power fail on a configurable GpIO
- recharge the batteries.
- voltage regulator, accept from 5V to 25V.
- Low battery drain when off
- optionally stackable
- It uses 4x commonly available AA Ni-MH batteries
- Very long battery duration
- Open Source design (GPL Licensed)
0 in stock Read more
mOsso Beaglebone I/O expansion cape
€54.00- beaglebone white, black and green supported
- devicetree and schematic files released
- 4 relays up to 275VAC @ 10A
- 4 digital opto-isolated inputs up to 50 meters distance
- 9V to 24V DC power supply accepted
- Beaglebone is powered from the expansion pins
- rs485 serial port
- open source design
0 in stock Read more
License
Where not differently specified the contents of this web site are released under CC-BY-NC-SA
Licenza Creative Commons.
Licenza Creative Commons.
© 2024 Nexlab - by Franco (nextime) Lanza
nextime –
du you have any certifications, like CE or safety
nextime –
Yes, the board is CE and ROHS certified. Anyway take care that if you use it to build a final product, you will need to certify your assembled product in any case.
nextime –
The relays in the picture are omron g5la-1 12VDC. Could the board be supplied with 24VDC instead of 12VDC?
nextime –
Yes, just drop me an email or specify it in the form comments during checkout
